ELECTRIC VEHICLE CHARGERS
Power the future of mobility with Microcarerange of Electric Vehicle (EV) Chargers.
In response to the growing demand for electric vehicles, Microcare has developed a range of EV chargers that each offer targeted, innovative solutions to South Africa’s evolving EV charging challenges. From fast, grid-independent solar options to intelligent multi-station setups, each charger plays a crucial role in building a reliable and efficient EV future.
ELECTRIC VEHICLE CHARGERS
Power the future of mobility with Microcarerange of Electric Vehicle (EV) Chargers.
In response to the growing demand for electric vehicles, Microcare has developed a range of EV chargers that each offer targeted, innovative solutions to South Africa’s evolving EV charging challenges. From fast, grid-independent solar options to intelligent multi-station setups, each charger plays a crucial role in building a reliable and efficient EV future.
Product Variations
Product Variations

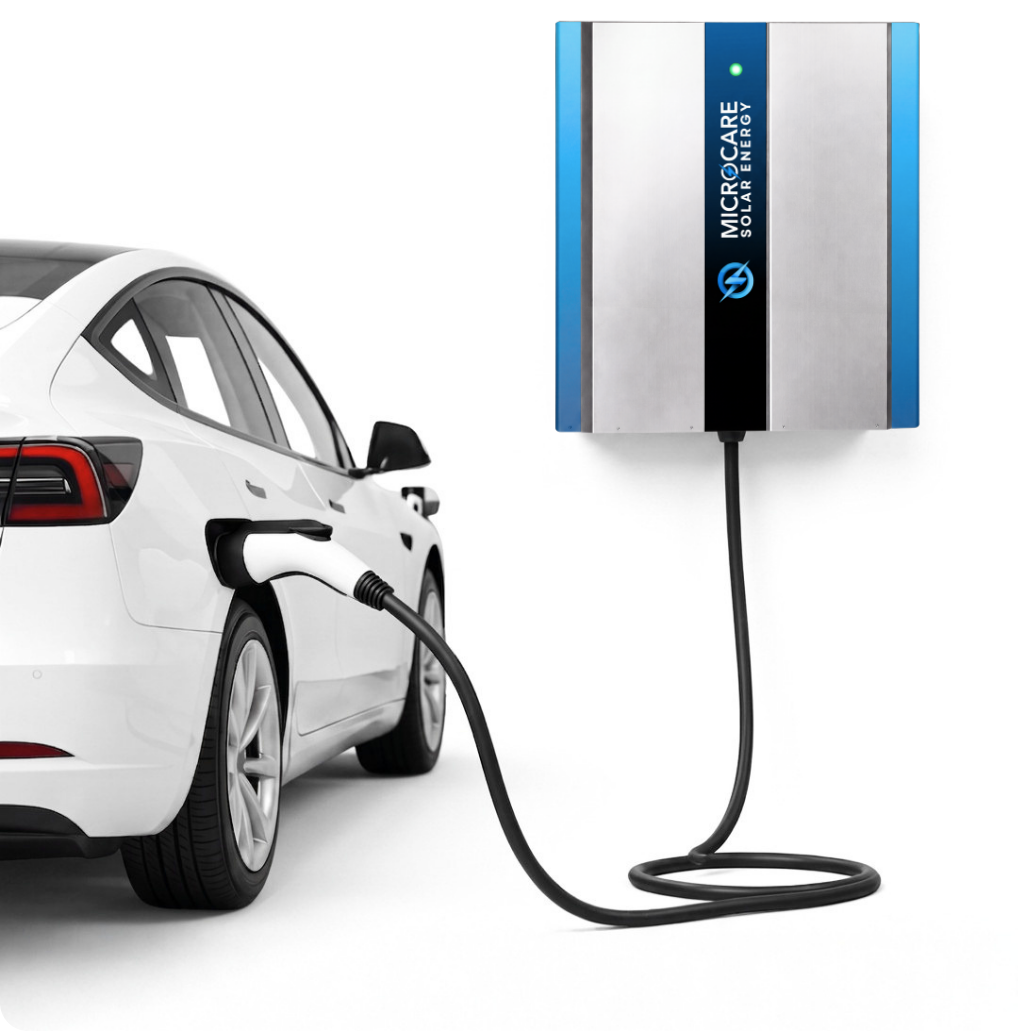

Solar DC-DC Fast Charger
The Microcare Solar DC-DC Fast Charger is designed to deliver high, consistent DC output at up to 485V, connecting directly to solar panel strings through a combiner box—eliminating the need for external inverters, converters, or an AC grid connection. With integrated MPPT (Maximum Power Point Tracking) technology, it maximizes energy extraction from solar arrays, ensuring high efficiency under varying conditions. Built-in output protection and a pre-charge circuit enhance safety and operational reliability. Engineered for true standalone performance, this fully self-contained DC power solution operates independently of external power infrastructure.
Designed with rugged, industrial-grade components, the charger offers plug-and-play DC coupling for rapid deployment in demanding environments such as mining operations, construction sites, transport hubs, and solar-powered EV stations—anywhere grid access is limited or non-existent. It is equally suitable for DC microgrid battery charging applications. Delivering conversion efficiencies of up to 97%, it significantly outperforms traditional AC-to-DC systems, which typically reach only around 80% efficiency.
- Input Panel Voltage (600-800V)
- Output Battery Voltage (330-485V)
- Output Power up to 50kW
- No Double Conversion (AC)
- Input & Output protection
- Electronic Current Limiting
- Peak efficiency greater than 97%
- Advanced Constant Power Point Tracking algorithm
- OCPP 1.6J Compliant
- CCS2 Fixed Charging Cable
- RGB Indication Light

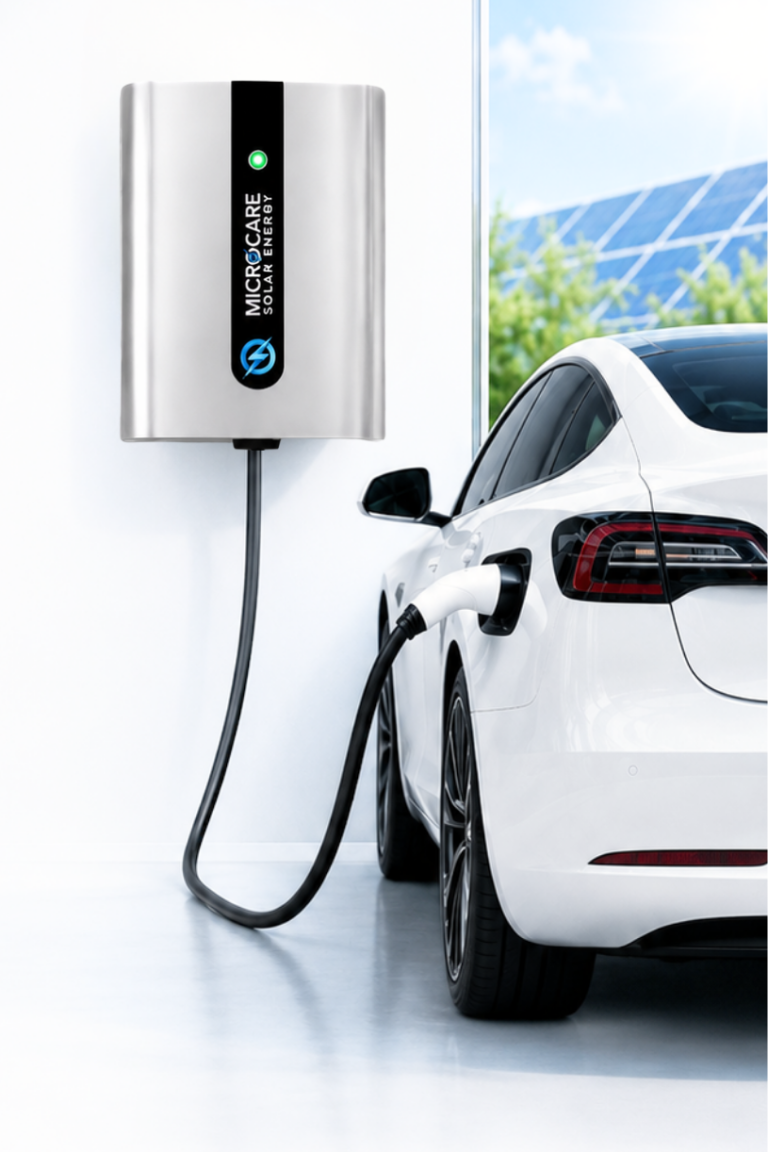

AC EV Charger
Power the future of mobility with the Microcare Single- and Three-Phase AC EV Charger – a smart, reliable solution for EV charging in residential, commercial, and light industrial environments. Designed for flexibility and ease of installation, this charger supports both single-phase and three-phase supplies, intelligently managing power draw based on the available utility supply and vehicle demand.
On single-phase installations, the charger delivers up to 32A, while on three-phase supplies it can provide up to 32A per phase, enabling faster and more efficient charging where capacity allows. It utilizes the European standard Mennekes Type 2 interface, ensuring wide compatibility with most electric vehicles on the market. It is engineered for intelligent load management at the point of installation, allowing installers to set appropriate current limits to match the site’s electrical capacity and protect existing infrastructure.
- Max Charge Rate – Up to 32A on single-phase and 32A per phase on three-phase supply, delivering fast AC charging for most home and commercial EV applications.
- Robust Enclosure – Durable construction suitable for both indoor and outdoor installation.
- LED Charging Status Indicator – Clear visual feedback for power, charging, and fault conditions.
- App Connectivity – Monitor charging, start/stop sessions, and adjust settings via mobile app.
- Residual Current & Over-Current Protection – Built-in electrical safety for users and vehicles.
- 5-Year Warranty – Long-term confidence and local support on every charge.
AC EV Charger
Power the future of mobility with the Microcare Single- and Three-Phase AC EV Charger – a smart, reliable solution for EV charging in residential, commercial, and light industrial environments. Designed for flexibility and ease of installation, this charger supports both single-phase and three-phase supplies, intelligently managing power draw based on the available utility supply and vehicle demand.
On single-phase installations, the charger delivers up to 32A, while on three-phase supplies it can provide up to 32A per phase, enabling faster and more efficient charging where capacity allows. It utilizes the European standard Mennekes Type 2 interface, ensuring wide compatibility with most electric vehicles on the market. It is engineered for intelligent load management at the point of installation, allowing installers to set appropriate current limits to match the site’s electrical capacity and protect existing infrastructure.
- Max Charge Rate – Up to 32A on single-phase and 32A per phase on three-phase supply, delivering fast AC charging for most home and commercial EV applications.
- Robust Enclosure – Durable construction suitable for both indoor and outdoor installation.
- LED Charging Status Indicator – Clear visual feedback for power, charging, and fault conditions.
- App Connectivity – Monitor charging, start/stop sessions, and adjust settings via mobile app.
- Residual Current & Over-Current Protection – Built-in electrical safety for users and vehicles.
- 5-Year Warranty – Long-term confidence and local support on every charge.
Solar DC-DC Fast Charger
The Microcare Solar DC-DC Fast Charger is designed to deliver high, consistent DC output at up to 485V, connecting directly to solar panel strings through a combiner box—eliminating the need for external inverters, converters, or an AC grid connection. With integrated MPPT (Maximum Power Point Tracking) technology, it maximizes energy extraction from solar arrays, ensuring high efficiency under varying conditions. Built-in output protection and a pre-charge circuit enhance safety and operational reliability. Engineered for true standalone performance, this fully self-contained DC power solution operates independently of external power infrastructure.
Designed with rugged, industrial-grade components, the charger offers plug-and-play DC coupling for rapid deployment in demanding environments such as mining operations, construction sites, transport hubs, and solar-powered EV stations—anywhere grid access is limited or non-existent. It is equally suitable for DC microgrid battery charging applications. Delivering conversion efficiencies of up to 97%, it significantly outperforms traditional AC-to-DC systems, which typically reach only around 80% efficiency.
- Input Panel Voltage (600-800V)
- Output Battery Voltage (330-485V)
- Output Power up to 50kW
- No Double Conversion (AC)
- Input & Output protection
- Electronic Current Limiting
- Peak efficiency greater than 97%
- Advanced Constant Power Point Tracking algorithm
- OCPP 1.6J Compliant
- CCS2 Fixed Charging Cable
- RGB Indication Light

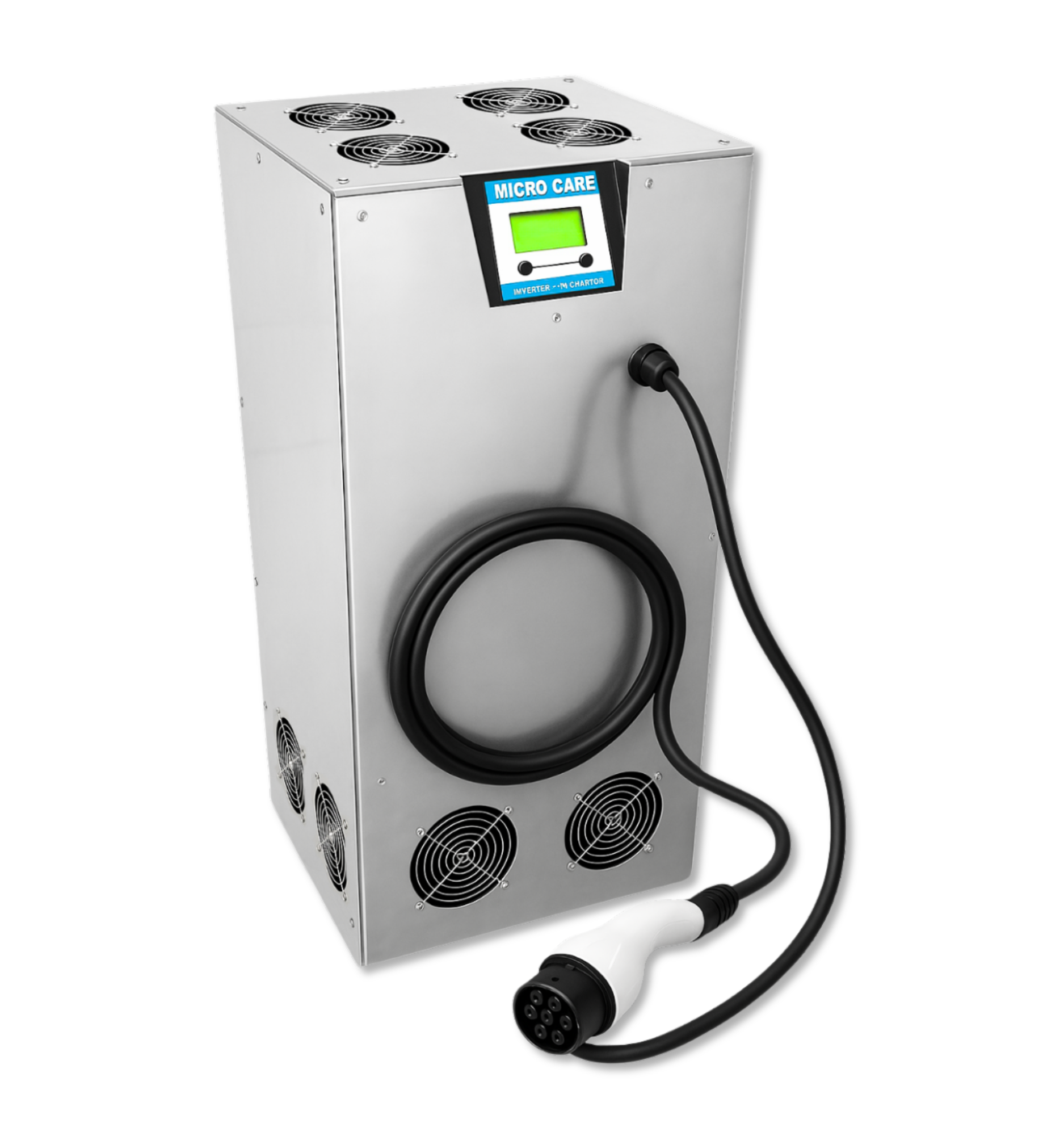

15kW Inverter With Dynamic Smart EV Charging
The Microcare 15kW Inverter with Dynamic Smart EV Charging represents the next evolution in integrated solar and electric vehicle infrastructure. Designed and manufactured in South Africa, this intelligent system combines Microcare’s trusted bi-directional, transformer-based inverter technology with advanced EV charging software.
It delivers power simultaneously to connected loads and an electric vehicle, intelligently prioritizing distribution based on user-defined settings, real-time energy availability, and system demand. Whether used in residential, commercial, or industrial environments, this inverter allows users to fully capitalize on solar energy while preparing for a future of electrified transport.
By integrating EV charging into the inverter infrastructure, Microcare simplifies installation, reduces equipment costs, and future-proofs your energy system.
- 15kW Bi-directional Transformer-Based Inverter
- Integrated Smart EV Charging with Dynamic Load Prioritization
- Simultaneous Load and EV Charging Support
- Built-in High-Rate Multi-Stage Battery Charger
- Auto-detection of Solar (DC) and Grid (AC) Supply
- Pure Sine Wave Output with Auto Transfer Delay for Grid Fluctuation Protection
- Wi-Fi Enabled for Remote Monitoring & Management
- Time-Scheduled EV Charging Functionality
- 3-Attempt Auto Restart on Overload with Auto Shutdown Protection
- Compatible with Lithium-Ion Batteries and Generators
- Transformer Allows High Inrush Current and Surge Capacity
- Local Manufacturing and Servicing Since 1990
- 5 – Year Factory Warranty
- Built-in Fan Cooling for Enhanced Component Longevity
- Audible Buzzer for Faults and Operational Status
15kW Inverter With Dynamic Smart EV Charging
The Microcare 15kW Inverter with Dynamic Smart EV Charging represents the next evolution in integrated solar and electric vehicle infrastructure. Designed and manufactured in South Africa, this intelligent system combines Microcare’s trusted bi-directional, transformer-based inverter technology with advanced EV charging software.
It delivers power simultaneously to connected loads and an electric vehicle, intelligently prioritizing distribution based on user-defined settings, real-time energy availability, and system demand. Whether used in residential, commercial, or industrial environments, this inverter allows users to fully capitalize on solar energy while preparing for a future of electrified transport.
By integrating EV charging into the inverter infrastructure, Microcare simplifies installation, reduces equipment costs, and future-proofs your energy system.
- 15kW Bi-directional Transformer-Based Inverter
- Integrated Smart EV Charging with Dynamic Load Prioritization
- Simultaneous Load and EV Charging Support
- Built-in High-Rate Multi-Stage Battery Charger
- Auto-detection of Solar (DC) and Grid (AC) Supply
- Pure Sine Wave Output with Auto Transfer Delay for Grid Fluctuation Protection
- Wi-Fi Enabled for Remote Monitoring & Management
- Time-Scheduled EV Charging Functionality
- 3-Attempt Auto Restart on Overload with Auto Shutdown Protection
- Compatible with Lithium-Ion Batteries and Generators
- Transformer Allows High Inrush Current and Surge Capacity
- Local Manufacturing and Servicing Since 1990
- 5 – Year Factory Warranty
- Built-in Fan Cooling for Enhanced Component Longevity
- Audible Buzzer for Faults and Operational Status
